Only one ID detected


New Topic Reply 🔗 🖨 CANhack.de - Index » CANhack.de CAN-USB System: RKS+CAN
Author Message
sestec



Joined: 01/13/2022
Posts: 3
Karma: +1 / -0   Thank you, like it!
Location: Amriswil

Premium Support

Post27-04-2022, 19:39    Subject: Only one ID detected Quote

hi,
I bought the interface some time ago, but I never had the time to use it.
Today, I plugged it into my vehicle and wanted to take a look at the data using the KCanMonitor software.

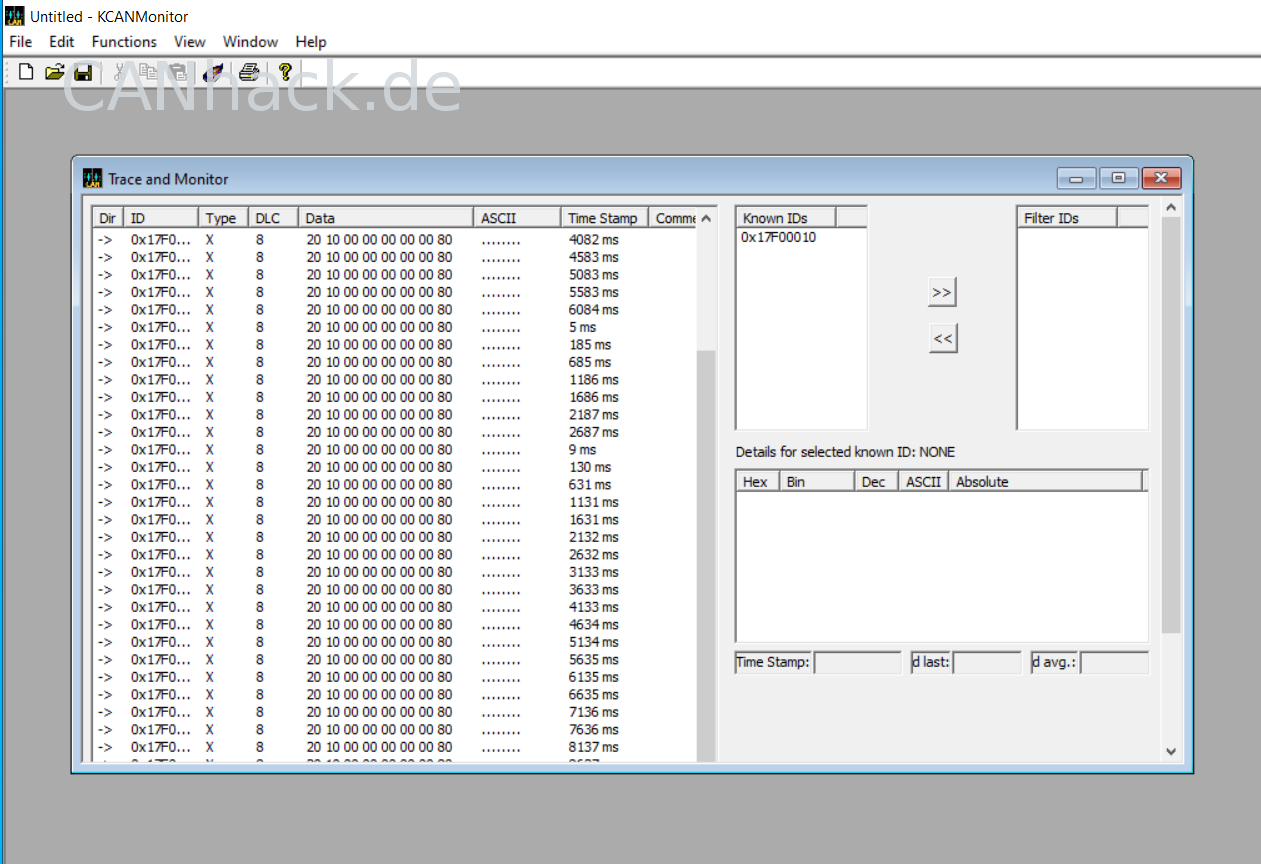

The interface only recognizes one ID. See the image.
I've tried different bitrates, but it only reads with a bitrate of 500000 and only recognizes one ID.
Vehicle: Volkswagen Passat B8, manufactured in 2015.
What am I doing wrong?



 Description:
 Only one ID detected
 File size:  208.18 KB
 Viewed:  1060 times




Translated on 12-07-2026, 21:26.
Back to top Profile PM
CAN-Diagnose
Administrator
Administrator
Avatar-CAN-Diagnose

Joined: 06/07/2011
Posts: 573
Karma: +29 / -0   Thank you, like it!
Location: Ländle



Post28-04-2022, 7:24    Subject: Only one ID detected Quote

Hi,

Which CAN bus are you connected to? I would say it's incorrectly connected with the wrong bitrate.

Best regards, Rainer.
Dipl.-Ing. (FH) Rainer Kaufmann - Embedded Software Freelancer
System RKS+CAN: CANHack.de CAN-Bus Interface


Translated on 12-07-2026, 21:27.
Back to top Profile PM WWW
sestec



Joined: 01/13/2022
Posts: 3
Karma: +1 / -0   Thank you, like it!
Location: Amriswil

Premium Support

Post28-04-2022, 17:29    Subject: Only one ID detected Quote

How can I possibly connect it incorrectly? I plugged the interface directly into the OBD socket on the vehicle.
The KOBD2Check recognized the vehicle identification number (VIN), but was unable to read any error codes.
Under the "Values" section, I was able to read temperature, speed (or RPM), and some other data points.


Translated on 12-07-2026, 21:27.
Back to top Profile PM
sestec



Joined: 01/13/2022
Posts: 3
Karma: +1 / -0   Thank you, like it!
Location: Amriswil

Premium Support

CAN-Diagnose likes this.
Post28-04-2022, 18:14    Subject: Only one ID detected Quote

Okay, I understand now. Since I have a VW, I need to tap directly into the CAN bus either at the gateway or on the line itself. I've done that now, and it worked.
Thank you...


Translated on 12-07-2026, 21:28.
Back to top Profile PM
